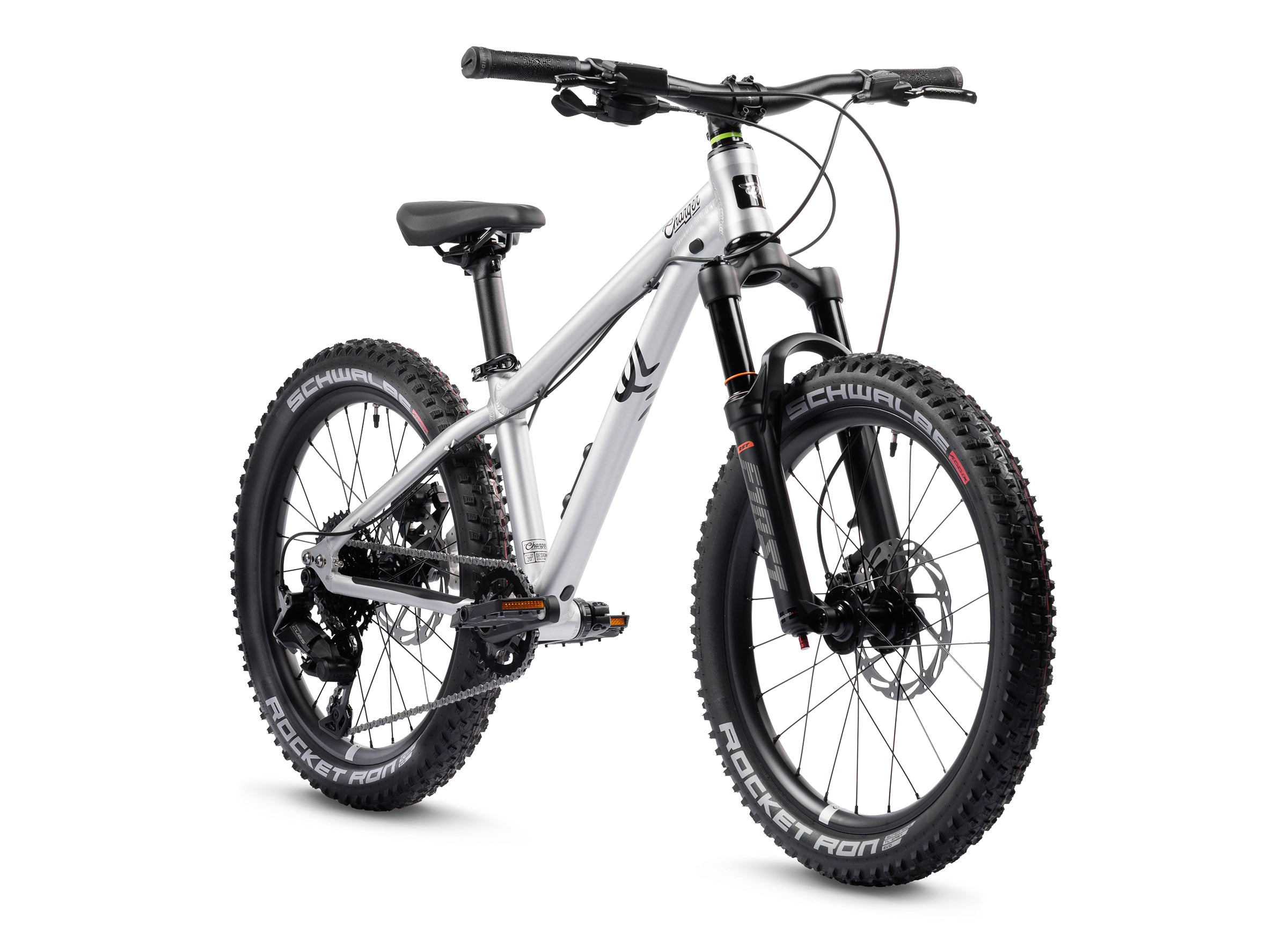

early rider kinderfahrrad 20 zoll Seeker 20 Kids Bike | 20" Childrens Bike

early rider kinderfahrrad 20 zoll Seeker 20 Kids Bike | 20" Childrens BikeSeek and ye shall find. The Seeker 20 is built for exploring rugged trails and off road terrain. Continuing with the geometry up grades such a lower bottom bracket for improved stability, slacker headtube angles for precise handling and wider tire clearance this bike is made for confident riders. The 8 Speed Shimano drivetrain with 11 36t gear ratio and short 110mm crank arms offers smooth, efficient pedalling. Equipped with powerful Tektro 160mm

Seek and ye shall find.

The Seeker 20 is built for exploring rugged trails and off-road terrain. Continuing with the geometry up grades such a lower bottom bracket for improved stability, slacker headtube angles for precise handling and wider tire clearance  this bike is made for confident riders. The 8 Speed Shimano drivetrain with 11-36t gear ratio and short 110mm crank arms offers smooth, efficient pedalling. Equipped with powerful Tektro 160mm hydraulic disc brakes, sealed bearing wheels with bolt-thru axles, and grippy Schwalbe Smart Sam 2.35" tires, this bike is ready for any challenge and can tackle any adventure with ease and comfort.

ASSEMBLY INSTRUCTIONS:

Your bike will arrive carefully packaged and boxed with the rear wheel attached. The front wheel will need attaching using the skewer supplied. The handlebar will be zip tied to the top tube, simply remove the bars and all packaging and attach to the stem. Add the saddle and adjust to the required height. Then simply add the pedals. Please retain your manual.

[Left column]

INSIDE LEG

54CM

FRAME

HAND BRUSHED AL6061, FORGED SLIDING DROP OUTS

FORK

HAND BRUSHED AL6061, FORGED DROP OUTS

STEERER TUBE

AL6061

CRANKS

CRUX 110MM DIRECT MOUNT, NARROW Q FACTOR

PEDALS

ER CNC'D AL6061, PLATFORM, STUDDED, CARTRIDGE BEARING

BOTTOM BRACKET

CRUX 24MM EXTERNAL CUP

RIMS

20 X 28H, DOUBLE WALLED TUBELESS COMPATIBLE

REAR HUB

FOUR-BEARING CASSETTE FREEHUB, CNC'D AL6061

FRONT HUB

CNC’D 6 BOLT DISC, AL6061, QR SKEWER

CHAIN

KMC X8

CHAINRING

DIRECT MOUNT, NARROW WIDE 30T, ALLOY

REAR CASSETTE

SHIMANO 8-SPEED 11-34t

SHIFTER

SHIMANO 8-SPEED TRIGGER

*Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice*

CLICK HERE TO VIEW THE USER MANUAL

[Right column]

WEIGHT

8.8KGS W/O PEDALS

DERAILLEUR

SHIMANO ALTUS 8-SPEED MECH

BRAKES

TEKTRO HYDRAULIC DISC, 160 ROTORS

LEVERS

TEKTRO SHORT REACH

FRONT TYRE

SCHWALBE SMART SAM 20x2.35", 67TPI WB

REAR TYRE

SCHWALBE SMART SAM 20x2.35", 67TPI WB

HEADSET

1 1/8” CARTRIDGE BEARING, CONVENTIONAL

STEM

FORGED AL6061, 35MM REACH, 6-BOLT

BARS

560MM DOUBLE BUTTED AL6061, 30MM RISE

GRIPS

ER LOCK ON KRATON 92MM

SEAT POST

27.2MM x 250MM AL6061

SADDLE

ER WING 2, RAILED

SEAT CLAMP

QR, 31.8MM
